A small one-degree temperature shift can change a Brix reading enough to affect batch costs for a craft brewery. This highlights the importance of mastering the use of refractometers for those in homebrewing, winemaking, coffee roasting, and laboratory settings.
Digital Glycol Refractometer
This focused guide covers the basics of refractometers, how they work, and how to use them in real settings. It includes step-by-step guidance for handheld and digital models, plus tips on choosing the right refractometer for your needs. It also addresses the process of purchasing refractometers and where to find them, including from established vendors like Installation Parts Supply (InstallationPartsSupply.com), a factory distributor and industrial supplier serving the beverage industry and OEMs for over two decades.
It provides quick guidance on obtaining Brix and Specific Gravity readings, performing calibration checks, and understanding the importance of temperature compensation and proper sample handling. Whether you require a portable model for on-site checks or a digital bench unit for laboratory use, this section aims to equip you with the knowledge to achieve precise and consistent measurements swiftly.
Main Takeaways
- Even small temperature shifts can change Brix results, making temperature control important.
- Refractometer use applies to brewing, winemaking, honey testing, and salinity checks.
- Handheld and digital refractometers fit different tasks, so match the tool to your workflow.
- Consider a best digital refractometer if you need fast, logged results and integration.
- Purchasing refractometers from reputable suppliers such as Installation Parts Supply can provide better parts access and technical support.

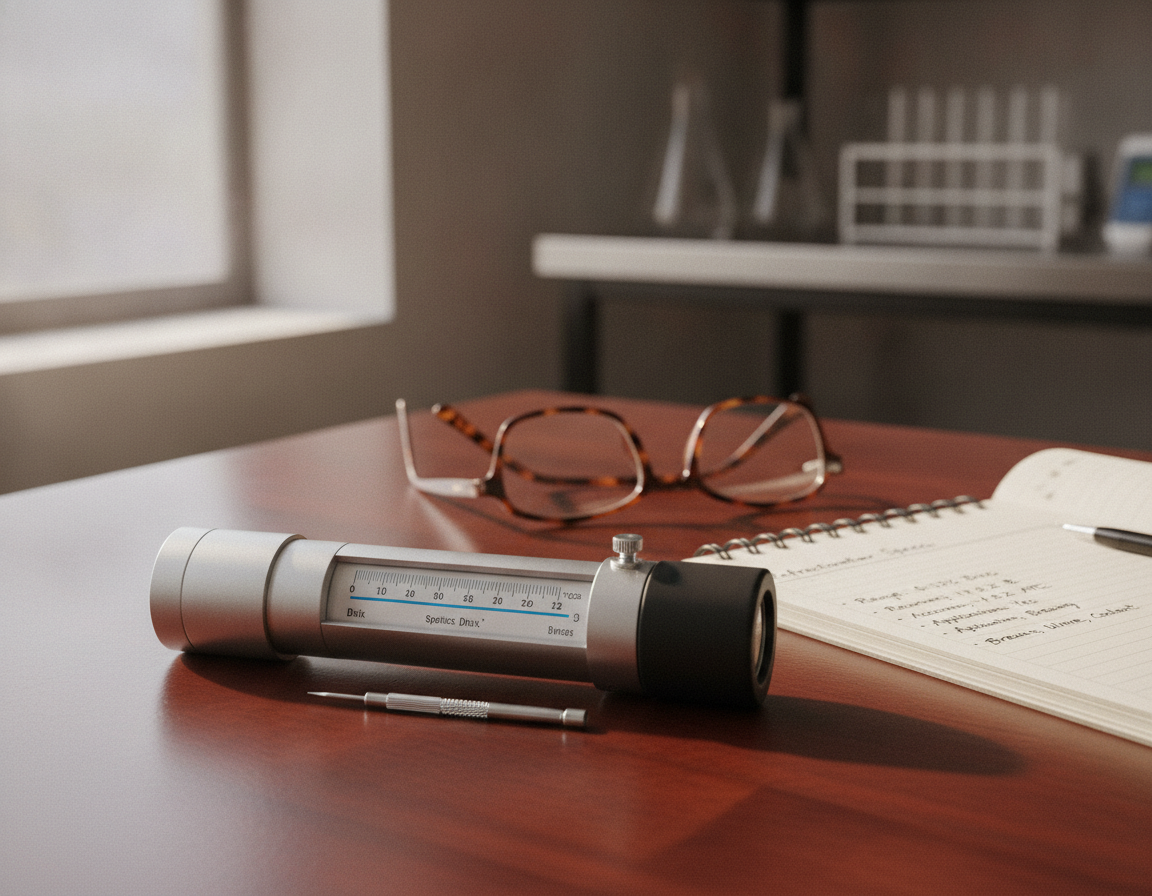

Automated Refractometers
What A Refractometer Is And How It Works
A refractometer measures the bending of light as it transitions from air into a sample. This light shift reveals the refractive index, which helps show the sample’s makeup and concentration. Understanding how refractometers work helps you choose the right tool and avoid common mistakes.
Core Definition And Principle
The instrument relies on Snell’s Law and the critical angle. When light enters the sample, it bends and creates a visible light-dark boundary. This boundary corresponds to a specific refractive index value. Temperature and wavelength can influence results, which makes compensation or temperature control important.
Common Refractometer Units And Scales
Refractometers display refractive index directly or convert it to units specific to various applications. For example, Brix (°Bx) measures sucrose concentration in samples such as fruit, juice, and honey. In the brewing and winemaking industries, Plato (°P), Specific Gravity (SG), Oechsle (°Oe), and Baumé (B°) are commonly used. Salinity readings often appear in PPT, ‰, or percentage form.
Common output choices include RI, % sugar, °Bx, °P, SG, and salinity. Users frequently rely on conversion tables or calculators for verification. Select a scale that fits the sample and expected range for the most reliable results.
Refractometer Types And Their Applications
Handheld optical pocket models are portable and need only a few sample drops. They rely on an internal prism and a reticle that users view through a magnifier. They are useful for both professionals and hobbyists working in vineyards, apiaries, and homebrew spaces.
Digital models rely on LED illumination and a sensor to show readings on a display. They often include automatic temperature correction, which simplifies data logging. Benchtop Abbe refractometers, on the other hand, excel in laboratory settings where high accuracy and broad wavelength control are critical.
Automatic and inline refractometers serve food processing and industrial applications that need high-throughput or continuous monitoring. Portable optical units can also be made for specific uses such as coolants and emulsions. For brewing, dual-scale tools that display Brix and SG or Plato can be especially convenient.
| Refractometer Type | Typical Use | Primary Benefit | Common Range |
|---|---|---|---|
| Handheld optical | Field checks: vineyards, apiaries, homebrew | Few drops needed, easy to carry | 0 to 32 °Bx |
| Handheld digital | Rapid field and lab checks | Easy readout, temp correction | Up to 85 °Bx, model-dependent |
| Abbe Benchtop | Analytical labs, QC | Strong precision, wavelength control | Wide RI and concentration ranges |
| Automatic Or Inline | Food processing and production lines | Ongoing monitoring, high throughput | Ranges matched to the process |
| Portable optical for fluids | Coolants, emulsions, glycol | Targeted concentration checks | Depends on application |
How To Choose The Right Refractometer For Your Needs
When choosing a refractometer, start with the exact task you need it to perform. A handheld optical model works well for fruit assessments, beekeeping, and fast homebrew checks. Digital handheld units are often better for coffee roasting and craft brewing because readings are quick. For labs, production lines, and glycol monitoring, benchtop or inline models are often preferred for precision and repeatability.
Match the device type to the application
For homebrewers aiming to measure wort and estimate ABV, it is advisable to opt for models displaying °Bx and SG or Plato. Coupling a refractometer with a hydrometer can aid in post-fermentation calculations. Professional breweries may prefer benchtop digital or inline refractometers for ongoing monitoring and system integration.
Honey and syrups necessitate a refractometer with a high Brix rating, typically between 60 and 90 °Bx. Coffee users tend to choose high-resolution digital handheld models for roast and extraction monitoring. For field assessments on plants and fruit, lightweight optical or battery-powered handhelds offer quick and reliable Brix measurements.
Key features to compare
When comparing refractometers, focus on the measurement range and available units: Brix, Plato, SG, and refractive index. ATC and the calibration method, mechanical or digital, are important comparison points. The device’s accuracy, repeatability, and sample volume indicate its reliability in practical scenarios.
Durability is important when the tool will be used in breweries, farms, or field conditions. Choosing between glass and sapphire prisms affects scratch resistance and cleaning convenience. For digital and automatic models, USB, RS232, or network connectivity options are essential for data logging. Low sample volume and fast calibration can speed up everyday testing.
Budget and cost factors
Handheld optical refractometers are the most budget-friendly option, requiring no power and making them suitable for those on a tight budget. Digital handheld models tend to cost more than optical units but add automatic correction and clear displays.
Benchtop, automatic, and inline units cost more, but they provide stronger accuracy, throughput, and integration for labs and production settings. Total cost should include calibration standards, spare prisms, and installation parts such as tubing, clamps, and fittings. Reviewing trusted brands side by side can help you choose the best feature-to-price balance.
| Use Case | Recommended Type | Key Features | Common Cost Range |
|---|---|---|---|
| Fruit fields, plants, beekeeping | Optical handheld or digital handheld | Brix range 0-35, low sample volume, rugged | About $30 to $250 |
| Homebrewing and craft beer | Dual-scale handheld or benchtop digital | °Bx, SG or Plato, ATC, simple calibration | About $50 to $1,200 |
| Brewery and wine laboratory work | Digital benchtop or inline | Precision, data capture, system integration | About $1,000 to $10,000+ |
| Specialty coffee and roasting | Handheld digital | Fine resolution, fast readout, ATC | About $100 to $600 |
| Honey and high-sugar matrices | High-Brix handheld or benchtop | Up to 90 °Bx, strong prism | $80 to $2,000 |
Preparing Samples And Workspaces For Accurate Readings
A serene, immaculate workspace and meticulous sample preparation are essential for dependable outcomes. Small, consistent setup habits can reduce errors during refractometer testing. This supports more consistent readings. Use a concise checklist before beginning each test.
Cleaning Methods And Sample Handling
Keep the prism free of residue by using distilled or deionized water and a lint-free cloth. Gently wipe the prism after each use to prevent contamination and extend instrument life. For difficult stains, use only the manufacturer-recommended solvent.
When dealing with viscous substances like honey or syrups, warm them slightly to enhance fluidity. This supports even distribution. Apply samples with pipettes, disposable droppers, or syringes for better control. Remove bubbles and foam before taking the reading.
Temperature Control And Compensation
The refractive index changes with temperature, so samples and the refractometer should be at ambient temperature. Many digital models automatically adjust for temperature variations. For important measurements, verify that temperature compensation is working properly.
For precise work, pair refractometer readings with a dependable thermometer. Use the manufacturer’s calibration guidance when operating conditions differ from the advised range. Use correction factors as required to offset temperature variation.
Sample Volume And Even Mixing
Handheld models usually need only a few drops, while benchtop devices may require larger samples. For suspensions and emulsions, ensure thorough mixing to prevent light scattering by solids, which could distort results.
For samples undergoing fermentation, clarify or filter them to align refractometer and hydrometer readings. Careful sample preparation, including mixing, removing impurities, and matching temperature, improves accuracy and limits repeated tests.
Using A Handheld Refractometer In Clear Steps
Accurate measurements with a refractometer are straightforward with a consistent routine. This guide covers preparation, sample application, and result interpretation for different uses. It helps produce reliable readings with handheld or pocket refractometers.
Getting the instrument ready
Clean the prism with distilled water and a lint-free tissue. Check the glass for scratches or residue that could affect the refractometer reading.
Calibrate before use. For analog models, place distilled water on the prism and adjust the calibration screw until the scale reads 0 °Bx or the specified RI. With digital units, use the built-in routine to zero the device and verify ATC operation.
Check lighting and the eyepiece focus on optical handheld refractometers. Good light helps you take a consistent reading refractometer value each time.
Adding the sample and taking the reading
Apply a few drops so the liquid covers the prism without spilling over. On optical models, close the daylight plate to create a thin, even film and avoid trapped air.
For optical handheld refractometers, look through the eyepiece and rotate the focus until the reticle is sharp. Match the shadow line to the scale and record the value.
For digital handheld units, add the sample and press the measurement button. Wait until the display stabilizes. Many pocket models automatically display a temperature-corrected result.
Recording and interpreting readings
Write down the numeric reading and the sample temperature. Note which scale you used, such as °Bx, SG or Plato, so results stay comparable over time.
For brewing, combine refractometer and hydrometer data or use manufacturer calculators to estimate ABV. Use the R-D approach: refractometer reading (°Bx) minus the D correction from SG conversions. When both instruments are read at the same temperature, expect roughly ±0.5% ABV accuracy in most homebrew scenarios.
For food and quality control, check readings against target specs or conversion charts. For honey and similar high-Brix products, rely on dense-syrup scales and tables to avoid mistakes.
Using Digital Refractometers And Automatic Models
In modern labs and production settings, precision and consistency matter. A digital refractometer provides fast data capture and reduces human error. Use a benchtop automatic unit for high-volume tasks or a portable digital unit for field assessments.
Setting Up And Powering The Device
Begin with the manufacturer’s instructions for powering the device, installing batteries, and warming up the unit. Use distilled water or certified solutions for calibration and confirm that Automatic Temperature Compensation is working.
Choose the units required for your work, including °Bx, Specific Gravity, or refractive index. For automatic refractometer systems in production lines, set pump rates, rinse cycles, and sample handling according to supplier recommendations.
Automatic Measurement Process
Automatic units use LED light and sensors or diode arrays to identify the refractive boundary. The system then uses algorithms to convert the signal into refractive index with temperature correction.
Many models support autosamplers or pumps for sequential sample loading, measurement, and rinsing. Inline automated refractometer setups allow continuous concentration monitoring. Make sure sample lines are clean and bubble-free to reduce measurement errors.
Configure sampling frequency and set alarm thresholds for out-of-spec values to prompt alerts. Use a portable digital refractometer for quick verification while troubleshooting automated systems.
Logging, Data Output, And Integration
Digital units provide instant results. Export options typically include USB, RS232, and Ethernet for data capture. Choose units that timestamp readings and record temperature with each measurement.
Integrate data with LIMS or SCADA to support process control and quality documentation. Automatic refractometers with native export formats can simplify data handling.
| Function | Portable Digital Refractometer | Benchtop Automatic Unit | Automated Inline Refractometer |
|---|---|---|---|
| Common use | On-site checks, QC spot tests | Laboratory batches, high-volume QC | Continuous process monitoring |
| Calibration method | Distilled-water manual calibration | Automatic routines on schedule | Automated calibration and remote verification |
| Data output | USB and Bluetooth | USB, RS232, Ethernet | Ethernet, Modbus, SCADA |
| Sample movement | Drop or small cuvette | Autosampler and pumps | Pumped process lines |
| Most useful for | Vineyards and on-site checks | QC laboratories and beverage R&D | Dairy, brewing, and syrup lines |
When planning installation, align fittings and tubing with your supplier’s specifications to match the refractometer’s flow and pressure requirements. When configured correctly, a digital Brix refractometer delivers quick and checkable results for lab and production teams.
How To Calibrate And Validate Your Refractometer
Ensuring accurate measurements requires regular calibration and validation. Begin every session by checking calibration, recording results, and following manufacturer instructions. This process supports accuracy and helps shorten troubleshooting.
Calibration methods and standards
Distilled or deionized water serves as the primary zero-reference. The instrument should show 0 °Bx or the required refractive index. Use certified fluids with known Brix or refractive index values for multi-point calibration.
Calibrate refractometer Brix and temperature checks
Temperature changes affect readings. Calibration at the recommended temperature or with Automatic Temperature Compensation is essential. Without ATC, manual corrections are necessary using the manufacturer’s tables.
Select calibration standards near the sample’s Brix range. Fruit juices require low-Brix solutions, while honey and syrups need high-Brix ones. Record each standard’s lot number and expiration date for traceability.
Verifying accuracy with reference materials
Periodic verification with reference materials and certified calibration fluids is necessary. Compare important measurements with a hydrometer or Abbe refractometer in the lab. This comparison supports refractometer validation and improves confidence in precise tasks.
In brewing and winemaking, pair refractometer readings with hydrometer Specific Gravity checks to estimate ABV. Use validated calculators or tables to resolve differences. Good technique and cross-checking can produce combined results near ±0.5% ABV accuracy.
Keep a calibration log with dates, standard lot numbers, measured values, and adjustments. Replace calibration fluids when expired or contaminated. Consistent records support audits and demonstrate control over calibration standards.
Using A Refractometer For Brewing, Winemaking And Beverage Testing
Brewers, winemakers, and roasters use refractometers to measure sugar and soluble solids more efficiently. This section covers the practical application of refractometers for wort and must testing. It also looks at refractometer use in brewing, wine, cider, and coffee.
Wort measurement and ABV calculation
Refractometer readings help track °Brix before fermentation starts. Because alcohol changes the refractive index, accurate ABV estimation requires hydrometer SG or a correction formula. One common approach calculates D = (SG – 1) × 1000 from hydrometer SG, then applies R-D with the refractometer reading and reference tables. Ensuring both samples are at the same temperature minimizes error.
Beer, wine, cider and coffee applications
Winemakers utilize refractometers to measure grape must in °Brix or degrees Oechsle, aiding in harvest planning and sugar addition. Brewers use °P or °Bx readings before and after boiling, then monitor fermentation with corrected refractometer data. For cider production, Brix readings help estimate alcohol content and guide yeast and nutrient selection.
Specialty coffee professionals use refractometers to report TDS and extraction yield. For roasters and baristas, a coffee refractometer supports brew strength checks and recipe refinement. For beer and cider, a beer refractometer makes quick field checks on tanks and kegs easier.
Homebrew and professional use cases
For homebrewers, handheld or digital handheld models are popular because they are easy to operate. Professionals, on the other hand, opt for benchtop or inline brewing refractometer systems for their accuracy and data logging capabilities. Draft systems and soda lines benefit from correct installation parts and routine maintenance that preserve sample quality.
| Common Use | Common Unit | Recommended Instrument | Main Advantage |
|---|---|---|---|
| Homebrew gravity checks | °Brix / °P | handheld refractometer for home brewing | Low cost and quick readings |
| Brewery production monitoring | °Bx with temp compensation | digital benchtop refractometer for brewing | Accurate readings with data export |
| Winemaking harvest planning | Brix or Oechsle | portable refractometer for must testing | Quick sampling in the vineyard |
| Cider production | °Bx | brewing refractometer with stable temperature | Predictable alcohol content |
| Coffee extraction testing | TDS and extraction yield | coffee refractometer | Consistent cup strength with recipe tuning |
| Beer draft checks | °Bx or solids percentage | beer refractometer, inline or handheld | Quick keg and line verification |
When choosing a refractometer for brewing, start with the exact measurement requirements. For home use, the best refractometer for home brewing should have clear scales and simple calibration. Coffee aficionados should choose a refractometer that reports TDS. For tanks and kegs, choose a durable beer refractometer suited to repeated checks.
Specialized Applications For Honey, Glycol, Plants And Salinity
Specialty refractometry covers many tasks, from measuring honey moisture to checking coolant levels and plant ripeness. Choosing the right instrument and calibration range is critical for reliable and consistent measurements. Below, we provide targeted advice and best practices for common niche applications.
Measuring Syrups And Honey
Honey analysis necessitates instruments capable of high-Brix readings, given its typical range of 60 to 90 °Bx. Using a syrup refractometer or honey-focused digital model with specific scales helps determine moisture content quickly and precisely. Slightly warm viscous samples and stir them well before measurement. Employing supplier-provided conversion charts is essential for translating Brix values into moisture percentages and quality grades.
Coolant And Glycol Concentration
Effective concentration management in cooling systems is imperative. A digital glycol refractometer provides accurate readings of ethylene or propylene glycol concentration as a percentage or freezing-point equivalent. Choose handheld models for fast spot checks and automatic units for continuous monitoring in HVAC systems. Ensure calibration with the recommended fluids from the manufacturer for consistent results.
Plant, Juice And Salinity Measurements
Different field and laboratory applications require specific measurement ranges. For plant analysis, a Brix refractometer typically spans 0-12 °Bx, aiding in the determination of soluble solids for optimal harvest timing. For juice and beverage processing, sugar-content refractometers support recipe consistency and quality control. For marine and food brine applications, a digital saltwater refractometer is necessary, capable of measuring in PPT or percent to ensure proper salinity levels for aquaculture and canning.
It is imperative to align the device’s range with the specific application and to use the correct calibration fluid. Check reputable suppliers and product pages for model details and specifications before purchasing to avoid errors and support traceability.
Maintenance And Troubleshooting To Extend Instrument Life
Regular refractometer maintenance helps preserve lifespan and performance. Simple inspections and minor adjustments after use can help avoid major problems. The guidance below covers care steps, troubleshooting, and when to repair or replace the instrument.
Regular Maintenance Checklist
Clean the prism after each use with distilled water and a lint-free cloth. For difficult residue, use mild isopropyl alcohol only as directed by the manufacturer.
Examine the prism for any scratches or chips. Inspect seals and O-rings on both benchtop and inline models to prevent leaks and contamination.
Routine calibration with distilled water and certified standards is important. Keep detailed calibration records with dates and results to track drift over time.
For portable units, change batteries before failure occurs. Keep digital-unit firmware and software current to support reliable operation.
Common Problems And Fixes
Inconsistent readings often come from a dirty, scratched, or air-bubbled prism. Cleaning, drying, and recalibrating the device can resolve this. Ensure both the sample and instrument are at the same temperature before measuring.
If the zero reading is wrong, recalibrate with distilled water. If the zero continues to shift, check prism alignment and optical surfaces for damage.
A blank display or digital error code often points to power or firmware trouble. Reboot the unit, confirm stable power, and clean sensors. Consult the manual for error-code definitions before opening or repairing the unit.
Blocked sample lines, faulty pumps, and clogged filters commonly cause inline and automatic system problems. Clear air locks, check rinse cycles, and examine tubing for wear. Having spare refractometer parts readily available can minimize downtime.
When To Replace Or Repair
Handheld units with irreparable prism damage or persistent calibration drift beyond the manufacturer’s specifications should be replaced. Repairs rarely restore a crushed or deeply scratched prism to its original condition.
For benchtop and automatic units, contact the manufacturer or an authorized service center for sensor replacement or factory recalibration. Compare repair estimates to the cost of a new instrument before authorizing work.
For system installations such as draft beer, soda, or RO setups, track the lifetime of fittings and tubing. If repair costs approach the price of a new unit or your measurement needs change, consider replacement. Stock common refractometer parts and tubing so repairs are faster and instrument life is protected.
| Maintenance Item | Required Action | Frequency | Impact On Life |
|---|---|---|---|
| Cleaning the prism | Distilled water and lint-free wipe; alcohol if needed | Every use | Prevents drift and surface damage |
| Instrument calibration | Use distilled water and certified standards; log results | Weekly or per protocol | Preserves accuracy and instrument life |
| Seals and O-rings | Inspect regularly and replace worn parts | Monthly during heavy use | Reduces leaks and internal damage |
| Power and firmware | Replace batteries; apply updates | As needed, with monthly checks | Supports reliable digital operation |
| Tubing and inline fittings | Check, clean, and replace worn clamps or tubing | Monthly or according to system schedule | Reduces downtime and need for refractometer repair |
Where To Buy And Get Professional Support For Commercial Use
Begin by aligning the device with your operational needs. You can source refractometers from laboratory suppliers, beverage equipment distributors, and trusted online retailers. It’s essential to compare the accuracy, Automatic Temperature Compensation (ATC), range, and connectivity options. This helps ensure the device fits handheld testing, benchtop analysis, or inline monitoring.
For additional hardware, consider Installation Parts Supply. Installation Parts Supply, a factory-authorized distributor, offers a wide range of refractometers and brewery installation supplies. Available supplies may include tubing, clamps, regulators, carbonators, and fittings. These components help maintain sanitary flow and protect sample integrity when a commercial refractometer is integrated into a draft system.
When constructing a draft or direct-draw system, it’s critical to choose compatible components to avoid flow issues. Select draft beer installation parts that fit the taps, regulators, and dispensing lines in use. This selection minimizes contamination risk and ensures consistent readings over time.
For inline sensing or data integration, work with experienced installers. Work with professional beverage equipment installers and factory-authorized distributors for system design, part selection, and compatibility checks. Their experience supports dependable commercial refractometer operation in production environments.
For complex setups, consult certified technicians. Certified technicians can support SCADA or LIMS logging, automated sampling, traceability, and calibration certification. Laboratory services can also validate procedures for ABV compliance and commercial labeling.
Refer to the table below for a comparison of common buying choices and support options when equipping a commercial beverage line.
| Buying Option | Most Useful For | Common Support | Supporting Supplies |
|---|---|---|---|
| Laboratory suppliers such as Ametek and Thermo Fisher | Calibration needs and benchtop precision | Calibration standards, technical datasheets | Calibration fluids, reference materials |
| Local professional dealers and beverage equipment distributors | Bar and taproom integrated systems | On-site installation, parts matching | Taprite regulators, carbonators, fittings |
| Specialty stores and online retailers | Digital and handheld tools for small labs | Return policies and customer reviews | Sample cups, handheld cases, cleaning kits |
| Installation Parts Supply and other factory-authorized distributors | Commercial projects and OEM needs | Warranty support, factory parts, OEM components | Brewery installation supplies and commercial refractometer units |
| Certified lab services | Regulatory compliance and traceable calibration | Certificates, validation, and documentation | Reference materials and supporting documentation |
Closing Summary
Utilizing a refractometer provides swift and precise measurements of soluble solids, sugar content, salinity, and glycol concentration across various industries. This guide explained the fundamental principle of refractive index measurement. It highlighted the importance of choosing the right instrument, whether handheld, benchtop, automatic, or inline. For those in the food and beverage sectors, grasping the nuances of refractometer applications and choosing the correct device is imperative. It helps prevent costly errors and supports consistent quality.
Accurate results depend on good sample preparation, temperature control, and regular calibration. For individuals engaged in small-scale brewing or winemaking, a handheld or digital handheld refractometer is often the most suitable choice. For larger operations or continuous monitoring, benchtop, automatic, and inline models are often better suited. These models offer features such as data logging and integration for production-scale and compliance needs.
Where possible, combine refractometer readings with hydrometer checks, especially for brewing and winemaking ABV calculations. This cross-checking supports quality control by confirming results. Detailed calibration and maintenance records are also valuable. Trusted suppliers can help with parts and installation that support long refractometer life and dependable operation. Using these practices can help you gather consistent and reliable data across food and beverage applications.
